What’s New 2016: DimXpert for Assemblies (MBD)

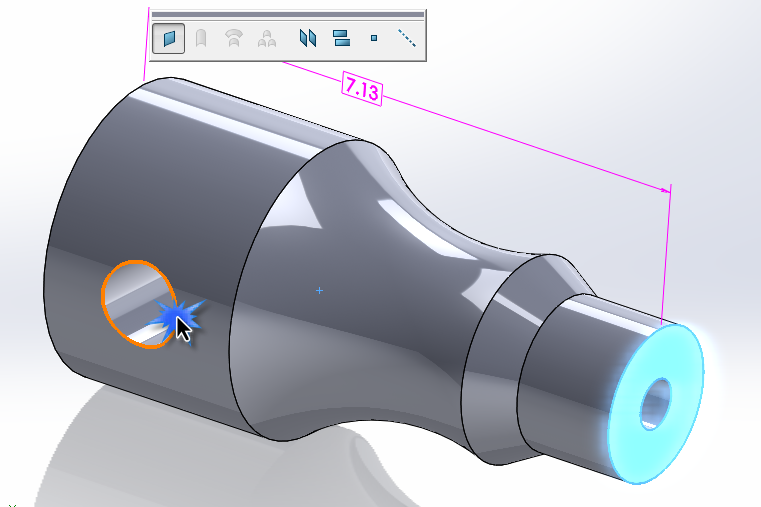

SWx2016-DimXpert-PickEdge

DimXpert for Assemblies

Maybe you drill assembly level mounting holes? Maybe you need to define inseparable parts like PEM fasteners on a sheet metal panel? You can now create DimXpert dimensions and tolerances in Assemblies. To use DimXpert in assemblies, simply pick appropriate commands like Location or Size Dimensions, Geometric Tolerances, or even Auto Dimension Scheme, just like the familiar way in parts.

Please let me know what you think of the of enhancements in the comments below, and always, thanks for reading!
